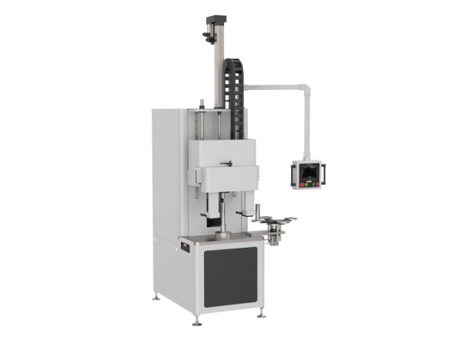

Auto Laser Servo Bottle Flask Dividing Machine
Item No. - VFL 010
Laser Flask Dividing Machine is an automatic model, which is mainly used for dividing flask crafts after water bulging.

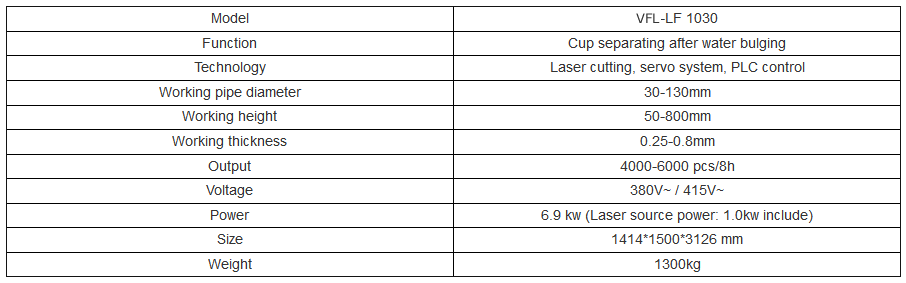

Specifications
Advantage
  • High production capacity.
  • Burr free cutting.
  • No maintenance.
  • Dust collector.
  • No trimming machine required.
  • Zero error length cutting on cup separation.
  • Servo control, PLC control.
Applications
  • Laser Flask Dividing Machine is an automatic model, which is mainly used for dividing flask crafts after water bulging.
  • The frame is made of sheet metal and 5# square tube welded and sprayed together, and the work panel is connected by A3 board and base structure.
  • Good stability, high efficiency and simple operation. Put the product into the equipment mold, press to start, the upper head mold goes down, the main shaft rotates 360°, and the servo motor pushes the cutting head to cut the edge.
  • Processed products are stable. It is an ideal equipment for metal utensil manufacturing and processing enterprises.
