Vaccum Flask Line

Home  /  Our Products  /  Vaccum Flask Line  /  Head/Rim Cutting

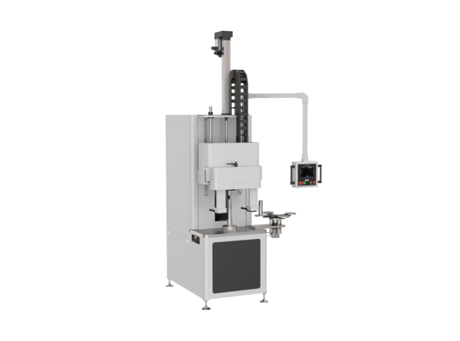

Auto Laser Servo Head/Rim Cutting Machine
Item No. - VFL 017
Laser Head/Rim Cutting machine is an automatic model, which is mainly used for cutting waste and crafts at the mouth of the cup and pot.

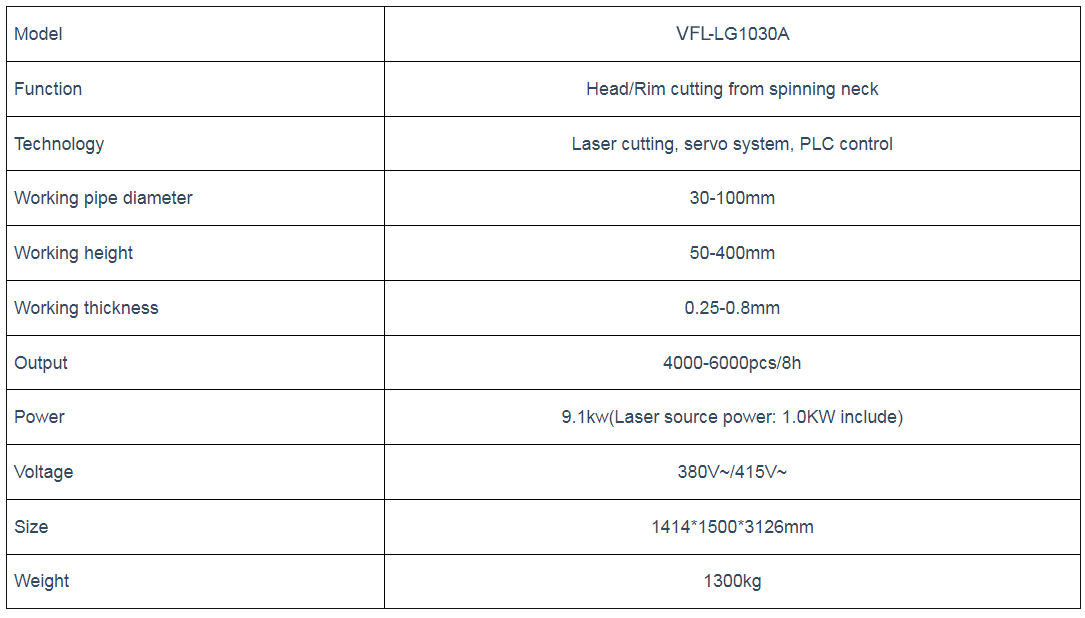

Specifications
Advantage
  • High production capacity.
  • Burr free cutting.
  • No maintenance.
  • Dust collector.
  • No trimming machine requirements.
  • Zero error length cutting on cup separation.
  • Servo system, PLC control.
  • The manipulator is integreated with the equipment, without additional installation and debugging of the manipulator.
Application
  • Laser Head/Rim Cutting machine is an automatic model, which is mainly used for cutting waste and crafts at the mouth of the cup and pot.
  • The frame is made of sheet metal and 5# square tube welded and sprayed together, and the work panel is connected by A3 board and base structure.
  • Good stability, high efficiency and simple operation. Put the product into the equipment mold, press to start, the upper head mold goes down, the main shaft rotates 360°, and the servo motor pushes the cutting head to cut the edge.
  • Processed products are stable. It is an ideal equipment for metal utensil manufacturing and processing enterprises.
