Water Bulging Machine
Item No. - VFL 009
The water bulging machine is a device that implements the fluid pressure forming process. It uses high-pressure liquid to form the hollow parts or tube blanks outwards, and makes them gradually fit the mold cavity to form parts of specified shape & size.

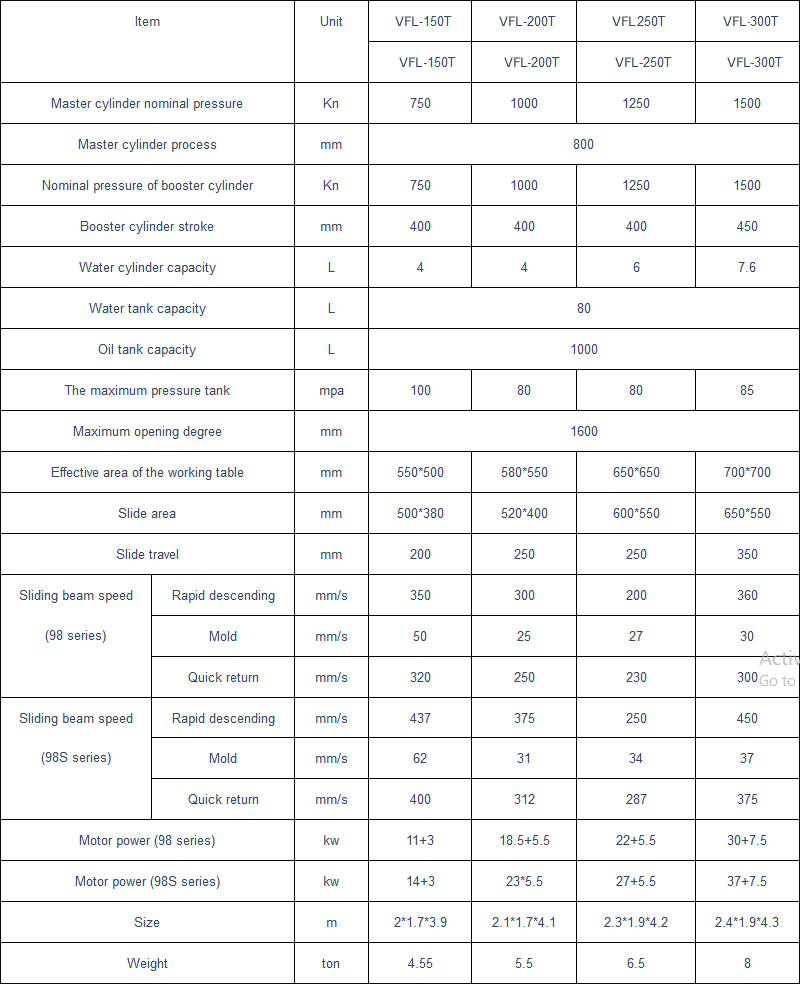

Specifications
Advantage
- Fast speed, high efficiency, low energy consumption.
- High working pressure, clear forming texture.
- With a movable sliding table, it is convenient for loading and
unloading, which can effectively reduce the height of the machine and
improve the stability and reliability of the machine.
- It has the function of material return and 7, which can realize the
function of material return and replenishment, and can increase the
bulging limit of material return, which is especially suitable for
encountering complex water swelling types.
- The hydraulic system is controlled by a two-way cartridge valve, with
low pressure loss and stable and reliable action.
- Formation control by water.
- Auto lubrication system.
Applications
- The water expansion machine is a device
that implements the fluid pressure forming process. It uses
high-pressure liquid to form the hollow parts or tube blanks outwards,
and makes them gradually fit the mold cavity to form parts of specified
shape and size.
- The liquid is injected into the vertical
tube blank through the worktable, the excess air is removed from the
upper side, and the axial feeding is completed by the main cylinder. The
structure is simple and the opening height is large, which can realize
the forming of parts with large axis length.
- Due to the large flow rate of the
supercharger, the liquid filling is rapid, the forming speed is fast,
and the forming efficiency is high.
- Rapid hydroforming hydraulic equipment is
mainly suitable for hydroforming process of pipe parts.
- Such as stainless steel, copper, aluminum,
iron and other materials vacuum cups, thermos bottles, kettles and other
tableware, utensils, stair handrails and decorative pipe fittings, etc.
- Instead of traditional rubber bulging and
other processes, it can realize the forming of parts with complex
surface shapes, and has many advantages such as high production
efficiency, small footprint, excellent performance, sensitive and
accurate control, safety and reliability.
