Hydraulic Drawing Machine
Item No. - VFL 049

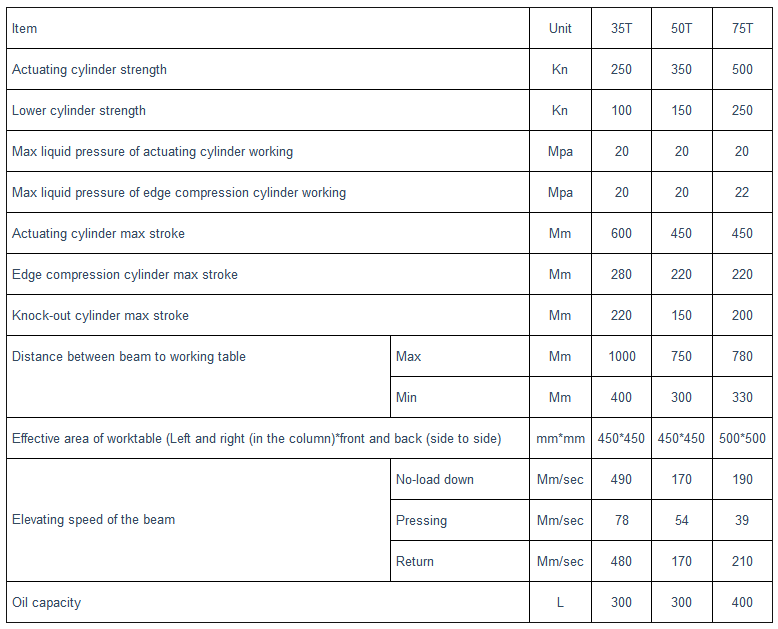

Specifications
Advantage
- The self-developed high-performance computer control system and the
configuration of the pressure proportional valve enable the pressure of
each cylinder to be adjusted and set separately, which greatly improves
the performance of the hydraulic press.
- All actions and function selections are displayed on a four-color LCD
screen for easy operation.
- Working from 160V to 280V, suitable for areas with large voltage
fluctuations.
- Using CPU control, reduce the number of hardware, increase the speed
of reflection, and reduce the repair rate of electrical failures.
- This model is equipped with the pressure preset function of the
blanking cylinder, which can change the stretching of high and deep
products and the pressure required during the stretching process. It can
make the pressure of the lower cylinder automatically change linearly
during the stretching process, thereby eliminating the product being
stretched repeatedly. Stretch marks produced by stretching make the
product more perfect and improve production efficiency.
- Equipped with photoelectric protection and travel protection
functions.
- The stroke, pressure and speed of the main and lower cylinders can be
adjusted arbitrarily within the rated range according to customer needs
to improve product quality and have strong practicability.
- Cooling function.
